VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity

VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity
VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity

Büyük resim :  VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: GNEE
Sertifika: SGS
Ödeme & teslimat koşulları:
Min sipariş miktarı: ≥1set
Fiyat: depend on product
Ambalaj bilgileri: Müşterinin Requst/Özelleştirmesi
Ödeme koşulları: Moneygram, Western Union, T/T, D/P, D/A, L/C
İletişim

VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity

Açıklama
Ürün: VPSA Oksijen Jeneratörü Ömür: 8-10 yıl
Malzeme: paslanmaz çelik Sıklık: 50Hz/60Hz
Kontrol sistemi: Plc Çıkış basıncı: 10-15kap veya kullanıcının gereksinimi olarak
Ağırlık: Kapasiteye bağlı Garanti: 1 yıl
İşlem: VPSA Sıcaklık: ortam
Oksijen çıkışı: ≤500Nm3/saat Çiy noktası: -40°C
Saflık: %90-95
Vurgulamak:

VPSA oxygen generator 50-80Nm3/hr

,

VPSA oxygen generator 90-95% purity

,

industrial VPSA oxygen generator

50nm3 80nm3 VPSA Oxygen Generator Oxygen Plant
Product Overview
The VPSA process is similar to PSA. Our VPSA oxygen generator uses an air blower to supply compressed air into an adsorption tower, operating with adsorption at low pressure and desorption under vacuum conditions. Under atmospheric or slightly above atmospheric pressure, a mixed bed composed of VPSA special molecular sieve and dryer absorbs N₂, CO₂, H₂O and other impurities, allowing oxygen to accumulate and be collected at the end of the bed. The saturated molecular sieve bed is then desorbed under vacuum, enabling continuous production of high-purity oxygen (90-95%).
Compared with PSA process, VPSA has more complex process equipment and higher initial investment but offers lower power consumption, making it ideal for large-scale oxygen production.
Technical Features
  • Fully automatic control system
  • Low energy consumption and production cost
  • Simple process with minimal equipment
  • Quick starting and easy stopping
  • Ideal for medium and large-scale oxygen production
  • Low working pressure for enhanced safety
  • Long service life with minimal maintenance
Product Specifications
Capacity (L/h) Power (Kw) Oxygen Gas Capacity Required (Nm³/h) Purity Oxygen Gas Pressure Required (Mpa) Power (AC/V)
3 13.5 4 99.9% or as required 0.8 220
5 14.5 6 99.9% or as required 0.8 380
10 27.5 12 99.9% or as required 1.0 380
20 54.5 30 99.9% or as required 1.0 380
30 65 40 99.9% or as required 1.6 380
40 81 50 99.9% or as required 1.0 380
50 99.5 60 99.9% or as required 1.6 380

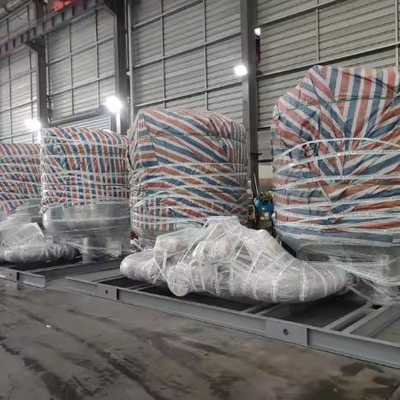

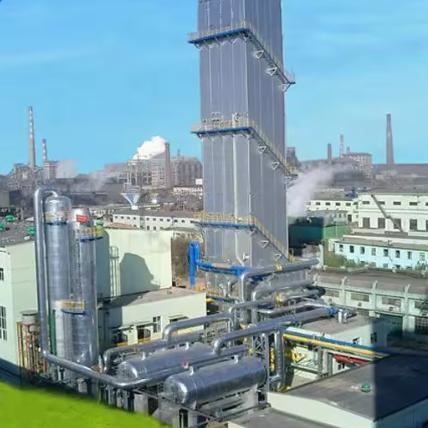

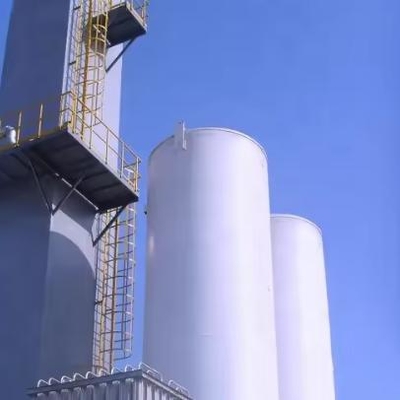

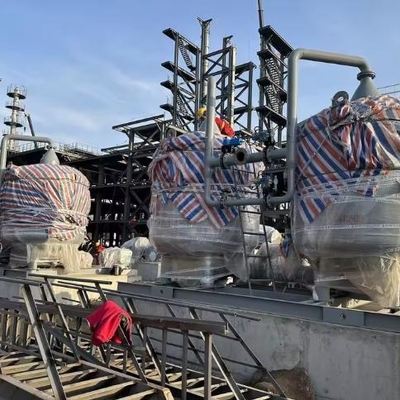

VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity 0 VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity 1 VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity 2 VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity 3
Process Description
Our Vacuum Pressure Swing Adsorption oxygen production system operates at normal temperature conditions, utilizing molecular sieve technology to selectively adsorb nitrogen from air. The adsorption tower pressure is reduced to desorb nitrogen from the molecular sieve, enabling continuous adsorption-desorption cycle operation for production of oxygen with purity levels of 80-95% or higher.
  1. Filtered air is blown into adsorption towers containing molecular sieve and activated alumina. Nitrogen molecules are absorbed while oxygen and argon pass through to the buffer tank.
  2. When a tower reaches saturation, the inlet valve closes and oxygen-rich air washes the other tower. A vacuum pump removes nitrogen from the saturated tower.
  3. After vacuuming, oxygen-rich air and buffer tank gas wash the molecular sieve to desorb nitrogen. The tower is then filled with product gas, ready for the next adsorption cycle.
Our Advantages
Pre-sale Services:
  • Professional technical support available 24/7
  • Custom compressor solutions based on your specifications
After-sales Services:
  • Comprehensive testing before shipping
  • Free online installation and launching instructions
  • Customizable language support
In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, heat exchangers and related equipment. For inquiries about our VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. We look forward to serving you.
