Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption

Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption
Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption

Büyük resim :  Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: GNEE
Sertifika: SGS
Ödeme & teslimat koşulları:
Min sipariş miktarı: ≥1set
Fiyat: According to the product
Ambalaj bilgileri: ahşap kutu ambalajı
Ödeme koşulları: L/C, D/A, D/P, T/T, MoneyGram, Western Union
İletişim

Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption

Açıklama
Akış hızı: 100-10000nm3/s Çiy noktası: -65°C
Yerleştirme yöntemi: Dikey Çalışma sıcaklığı: -196 - 50 ℃
Çalışma baskısı: 0,1-0,8 MPa İşlem: VPSA
Üretim oranı: 100 ~ 10000nm3/s İşletme baskısı: 1.6mpa
Dış gemi çapı: 2000 mm Gücü Çalıştırın: 1 kw
Vurgulamak:

1.6MPa Operating Pressure VPSA Oxygen Generator

,

Vertical Placement Medical Oxygen Plant

,

Low Power Consumption Oxygen Production Equipment

Pool Oxygen Generator 20 Liter Medical VPSA Oxygen Plant
Product Overview

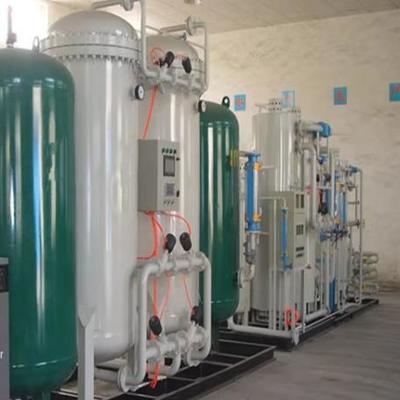

Our oxygen generator plants utilize a reliable vacuum pressure swing adsorption (VPSA) process, designed for continuous operation with oxygen purity levels of 90-95%. Available in capacities from 300 Nm³/h to 10,000 Nm³/h, these systems are available as pre-engineered standard units or customized solutions.
Technical Specifications
Parameter Details
Product Name VPSA Oxygen Generator
Brand Name GNEE
Model Range VPSA-100/200/500/1000/2000/5000 (Customized)
Capacity 50-10000Nm³/h
Oxygen Purity 90%-95%
Voltage 220V/50HZ (Customized)
Dimensions Varies by capacity
Performance Specifications
Model Oxygen Purity Production (Nm³/h) Air Consumption (Nm³/min)
VPSA-200 90%-95% 200 20
VPSA-500 90%-95% 500 70
VPSA-1000 90%-95% 1000 140
VPSA-2000 90%-95% 2000 280
VPSA-5000 90%-95% 5000 700
Customize 90%-95% Customize Customize
Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption 0 Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption 1 Medical VPSA Oxygen Generator with 1.6MPa Operating Pressure and Vertical Placement for Low Power Consumption 2
Key Features
  • Reliable and Efficient: Designed for 24/7 continuous operation with cost-effective performance
  • Intelligent Operation: One-touch startup and fully automated control system
  • Durable Components: Molecular sieves with lifespan up to 100,000 hours
  • Robust Construction: Quality air compressors and treatment systems for stable operation
  • High Altitude Capable: Specially designed for environments below 5000 meters
  • Quiet Operation: Noise reduction design minimizes disturbance
VPSA Oxygen Production Process

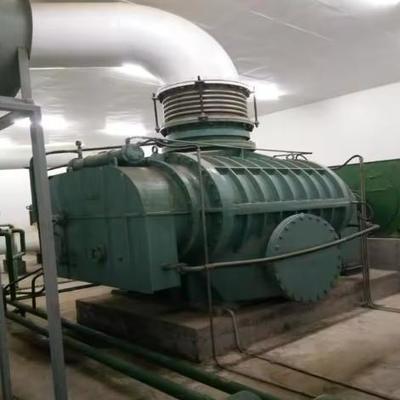

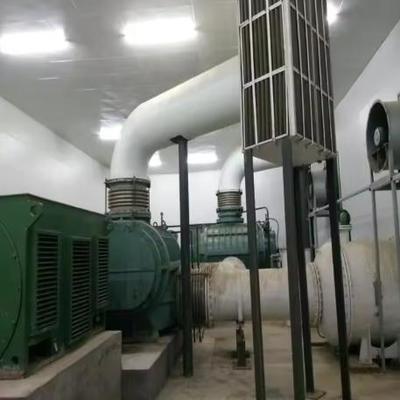

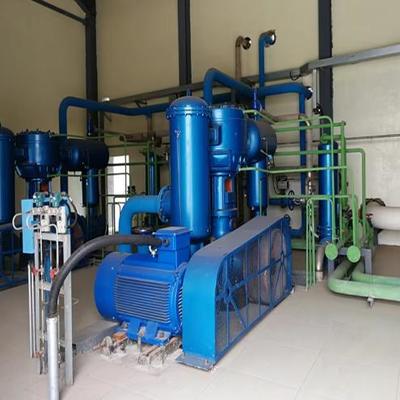

The VPSA process begins with low-pressure air being transported by a blower through purification systems. The air then enters molecular sieve adsorption towers (two or three-tower system) where nitrogen, carbon dioxide, and water vapor are adsorbed while oxygen is collected in a buffer vessel. The system automatically controls valve circulation through PLC or DCS to maintain continuous oxygen production.
This technology offers low operational costs, high automation, compact footprint, and convenient start-stop operation.
Packaging Details
Parameter Details
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Packaging Standard wooden box (fumigated for European exports) or PE film packaging available per customer requirements
In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com.
