Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production

Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production
Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production

Büyük resim :  Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: GNEE
Sertifika: SGS
Ödeme & teslimat koşulları:
Min sipariş miktarı: ≥1set
Ambalaj bilgileri: ahşap kutu ambalajı
Teslim süresi: Transit Süresi: Est. 17-24 gün
Ödeme koşulları: Moneygram, Western Union, T/T, D/P, D/A, L/C
İletişim

Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production

Açıklama
İşlem formu: Vakum basıncı salınımlı adsorpsiyon （VPSA） Oksijen tankı: 15000litre sıvı oksijen tankı
Boru malzemesi: paslanmaz çelik İşlem: VPSA
Makine Testi Raporu: Tedarik edilen Garanti: 1 yıl
Standart: ASML ， CE ， GB Kapasite: 10-5000 Nm3/saat
Teknoloji: Vakum Basınç Salıncak Adsorpsiyonu (VPSA) Gerilim: 220v/380v/50-60hz
Anahtar kelime: VPSA Oksijen Santrali Akış hızı: 100-10000nm3/s
Vurgulamak:

Medical Use VPSA Oxygen Plant

,

100Nm3 VPSA Oxygen Generator

,

80% Purity Oxygen Production Equipment

High-Quality Medical Use 100Nm³ 80% Purity VPSA Oxygen Plant
Product Description
VPSA (Vacuum Pressure Swing Adsorption) oxygen production device operates at normal temperature conditions, using molecular sieve to selectively adsorb nitrogen from air. By reducing pressure in the adsorption tower to desorb nitrogen from the molecular sieve, the system achieves continuous adsorption-desorption cycle operation, producing oxygen with purity ranging from 80% to 95% or higher.
Main Technical Parameters (80% Purity)
Model Specification VPSA-500 VPSA-1000 VPSA-2000 VPSA-3000 VPSA-4500 VPSA-6250 VPSA-7500
Gas Production Nm³/h 500 1000 2000 3000 4500 6250 7500
Voltage 10kv 10kv 10kv 10kv 10kv 10kv 10kv
Installed Power KW 250 435 715 1120 1600 2240 2500
Valve Gas Consumption m³/min 1.0 1.5 2.0 3.0 5.0 6.0 6.5
Cooling Water Circulation m³/h 20 40 80 110 120 130 140
Soft Water Consumption m³/h 1.92 2.7 2.88 3.9 4.2 4.5 4.8
Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production 0 Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production 1 Medical Use 100Nm3 80% Purity VPSA Oxygen Plant and Generator for Oxygen Production 2
Operation Process
  • Filtered air is blown into adsorption towers containing molecular sieve and activated alumina. Nitrogen molecules are absorbed while oxygen molecules and argon atoms pass through to the buffer tank.
  • When one tower reaches saturation, the inlet valve closes, and oxygen-rich air washes the other tower while a vacuum pump removes nitrogen.
  • After vacuuming, oxygen-rich air and buffer tank gas wash the molecular sieve to desorb nitrogen. The tower is then filled with product gas, ready for the next adsorption cycle.
Packing & Delivery

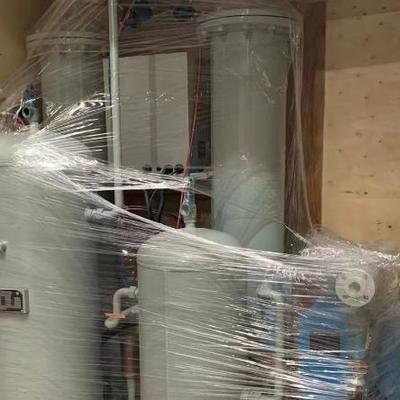

All equipment is packed with wooden cases and anti-collision foam blocks. Machines are wrapped in stretch film and pearl cotton, meeting export packing standards.

Two sets of machines are delivered in 20-foot or 40-foot containers. Boosters and fittings are packed in wooden cases with exterior signs and anti-collision protection.

Fragile components such as gauges, flowmeters, and controllers receive special collision prevention treatment.

In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. We look forward to serving you.
