93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use

93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use
93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use 93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use 93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use 93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use

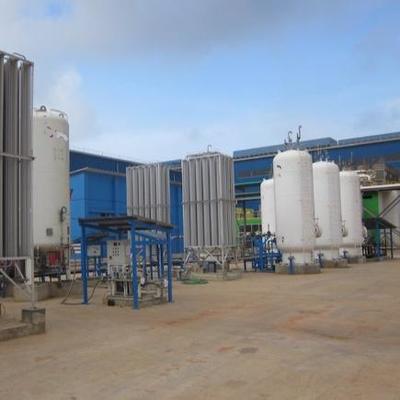

Büyük resim :  93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: GNEE
Sertifika: SGS
Ödeme & teslimat koşulları:
Min sipariş miktarı: ≥1set
Fiyat: According to the product
Ambalaj bilgileri: Müşterinin Requst/Özelleştirmesi
Ödeme koşulları: Moneygram, Western Union, D/P, T/T, D/A, L/C
İletişim

93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use

Açıklama
Makine Test Raporu: Tedarik edilen Dış kap malzemesi: Karbon çeliği
Çiy noktası: -65°C Dış gemi çapı: 2000 mm
nitrojen çıkışı: ≤250Nm3/saat Üretim oranı: 100 ~ 10000nm3/s
Güç Tüketimi: 0,5-1,5 kW/Nm3 Hava kompresörü gücü: 22-110KW
Güç kaynağı: 380V/50Hz Ömür: +10 yıl
Oksijen çıkışı: ≤500Nm3/saat Kullanım: Oksijen
İç malzeme: Paslanmaz çelik Test basıncı: 0.8MPA-1.6MPA
Vurgulamak:

93%±2% Purity VPSA Oxygen Generator

,

600m2 VPSA Oxygen Generator

,

0.5-1.5 kW/Nm3 Power Consumption Oxygen Generator

93%±2% 600m² VPSA/VSA Oxygen Generator for Float Glass
VPSA/VSA series oxygen production equipment uses molecular sieve to selectively adsorb oxygen in the air at room temperature. By reducing the pressure of the adsorption tower to desorb oxygen from the molecular sieve, it achieves continuous oxygen production with purity of 90-95%. This energy-efficient solution is widely used in glassware polishing and glass kiln combustion support, proven to reduce energy consumption by 30-60% in glass industry applications.
VPSA Oxygen Equipment Technical Parameters
Model O₂ Flow (Nm³/h) O₂ Purity (±2%) O₂ Pressure (MPa) Air Consumption (Nm³/h) Adsorption Form
VPSA-3 3 93% 0.2 0.6 Normal Pressure Adsorption
VPSA-6 6 93% 0.2 1.2 Normal Pressure Adsorption
VPSA-10 10 93% 0.2 2 Normal Pressure Adsorption
VPSA-20 20 93% 0.2 4 Normal Pressure Adsorption
VPSA-30 30 93% 0.2 6 Vacuum Adsorption
VPSA-50 50 93% 0.2 10 Vacuum Adsorption
VPSA-80 80 93% 0.2 16 Vacuum Adsorption
VPSA-100 100 93% 0.2 20 Vacuum Adsorption
VPSA-150 150 93% 0.2 30 Vacuum Adsorption
VPSA-200 200 93% 0.2 40 Vacuum Adsorption

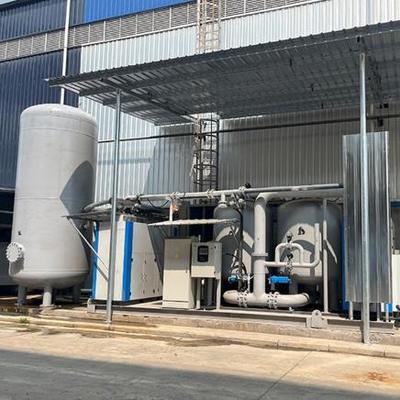

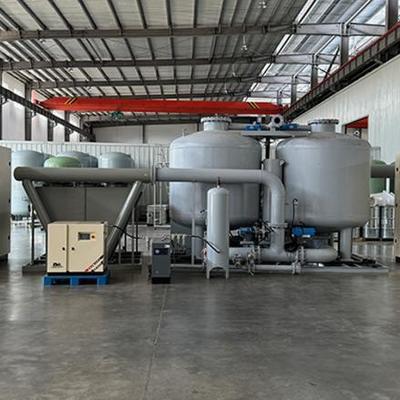

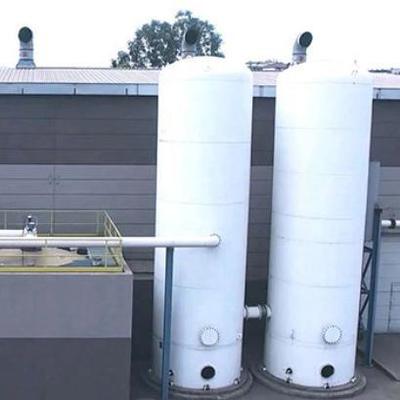

93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use 0 93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use 1 93%±2% Purity 600m2 VPSA Oxygen Generator with 0.5-1.5 kW/Nm3 Power Consumption for Industrial Use 2
Public Works Requirements (Customer Provided)
System Name Content Parameter
Vacuum pump sealing water Flow 3m³/Hr
Temperature <32ºC
Water quality (soft water) <30mg/L (CaO), suspended matter: 5mg/L, pH value: 6~9
Pressure >0.2Mpa sent to the water inlet of water equipment
Vacuum pump cooling water Flow 4m³/Hr
Temperature <32ºC
Water quality (soft water) <560mg/L (CaO), PH value: 6~9
Pressure >0.3Mpa sent to the water inlet of water equipment
Oxygen compressor cooling water Flow Air-cooled
Instrument air for butterfly valve Quality Dry, clean instrument air or inert gas
Flow 180m³/Hr
Dew point temperature -40ºC
Dust particle size Not more than 0.3μm
Pressure 0.4~0.7Mpa sent to the air bag (sub-cylinder)
Power requirements Voltage 380V
Installed capacity 539KW sent to the equipment receiving cabinet
Civil plant The project is designed outdoors without the client providing a factory building.
Equipment basis Construction according to drawing requirements
VPSA Oxygen Generator Advantages
  • Unique adsorption design prevents tank agitation for stable operation
  • Minimized invalid space increases operational efficiency
  • Low energy consumption with stable purity despite environmental changes
  • Advanced diagnostic program for fault identification
  • Fully automatic operation with low noise and valve wear
  • High reliability with rapid startup (20-30 minutes)
  • Fault-safety shutdown mode for protection
  • Low capital and maintenance costs with simple design
  • Extended valve service life through superior design
  • No cooler required, preventing molecular sieve wetting
In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, heat exchangers and other products. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. We look forward to serving you.
