VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation

VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation
VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation

Büyük resim :  VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: GNEE
Sertifika: SGS
Ödeme & teslimat koşulları:
Min sipariş miktarı: ≥1set
Fiyat: According to the product
Ödeme koşulları: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Yetenek temini: Her ay 25
İletişim

VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation

Açıklama
anahtar kelime: VPSA Oksijen Santrali Teknoloji: vakum basınç salınım adsorpsiyonu
Akış hızı: 100-10000nm3/s İç malzeme: Paslanmaz çelik
Makine Test Raporu: Tedarik edilen nitrojen çıkışı: 220Nm3/saat
hammadde: Hava Çalışma Modu: Sürekli
Çıkış baskısı: ≥1barg Doldurma oranı: % 95
Soğutma yöntemi: Hava soğutma Başlama zamanı: 15-30 dakika
Yerleştirme yöntemi: Dikey Önemli satış noktaları: Enerji tasarrufu
Vurgulamak:

15-30 minutes Start-Up Time VPSA Oxygen Generator

,

Stainless Steel VPSA Oxygen Generator

,

Continuous Operation VPSA Oxygen Generator

Hospital Oxygen Generator System - VPSA Oxygen Generators

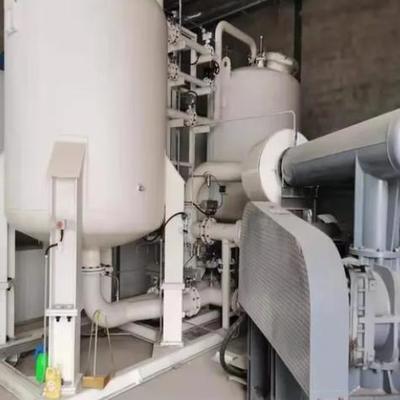

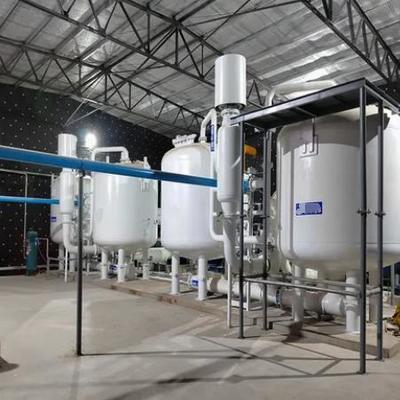

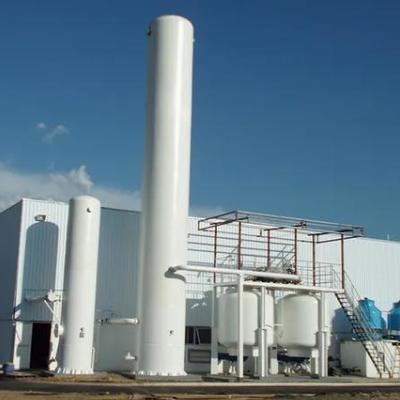

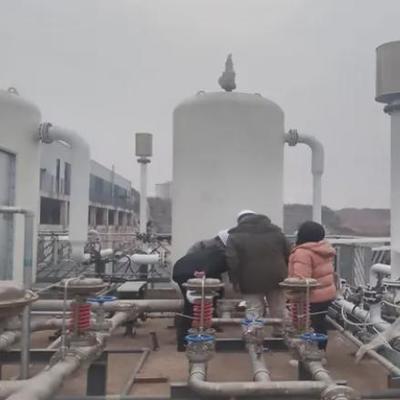

The VPSA Oxygen Generator extracts oxygen from air through a periodic cycle of "adsorption-desorption". Its core technology utilizes the adsorption difference of molecular sieves under different pressures—capturing nitrogen at low pressure and releasing impurities under vacuum conditions. Composed of adsorption towers, blowers, PLC control systems and other components, this equipment provides stable oxygen output with 90%-95% purity while consuming only 60%-70% of the energy required by traditional oxygen production methods.
Product Specifications
Model Oxygen Yield (Nm³/h) Load Adjustment Range (%) Water Consumption (t/h) Power Consumption (KWh/m³) Plot Area (m²)
VPSA-1000 1000 (~34 TPD) 50%-100% 30 Chat with us for details 468
VPSA-3000 3000 (~103 TPD) 50%-100% 70 Chat with us for details 572
VPSA-5000 5000 (~171 TPD) 50%-100% 121 Chat with us for details 648
VPSA-8000 8000 (~274 TPD) 25%-100% 205 Chat with us for details 1350
VPSA-10000 10000 (~342 TPD) 25%-100% 242 Chat with us for details 1350
VPSA-12000 12000 (~412 TPD) 25%-100% 258 Chat with us for details 1508
VPSA-15000 15000 (~514 TPD) 17%-100% 363 Chat with us for details 1890
VPSA-18000 18000 (~617 TPD) 17%-100% 387 Chat with us for details 2088
VPSA-20000 20000 (~686 TPD) 13%-100% 482 Chat with us for details 2800
VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation 0 VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation 1 VPSA Oxygen Generator with 15-30 Minutes Start-Up Time Stainless Steel Construction for Continuous Operation 2
Industrial Applications
In metallurgical applications, VPSA Oxygen Generators enable oxygen-enriched combustion. In steelmaking plants, blowing 90%-92% purity oxygen into converters increases flame temperature to over 1600°C, accelerating oxidation of impurities while reducing smelting cycles by 20%-30% and coal consumption by 15%-25%. For non-ferrous metal smelting (copper, aluminum), oxygen-enriched processes improve efficiency while reducing harmful emissions like sulfur dioxide.
In chemical production, these generators provide high-purity oxygen for oxidation reactions—such as ethylene oxide production where stable oxygen supply ensures reaction conversion rates exceed 98%. In wastewater treatment, oxygen aeration enhances aerobic microorganism activity, reducing treatment volume by 70% and processing time by 40% compared to air aeration.
Medical Applications
Medical facilities utilize VPSA Oxygen Generators for central oxygen supply systems, delivering 93%±3% purity oxygen to patient bedsides and ICU ventilators (5-30L/min flow). This on-site production eliminates risks associated with high-pressure cylinder storage and transportation while ensuring reliable supply for respiratory treatments and critical care.
Technical Operation
The system's molecular sieve (0.3-0.5nm pore size) selectively adsorbs nitrogen molecules (0.304nm) while allowing oxygen (0.296nm) to pass through. Operating at 0.1-0.3MPa low pressure and ambient temperature (5-45°C), the dual-tower design alternates adsorption/desorption cycles for continuous production—significantly simpler than cryogenic distillation (-196°C) with lower energy requirements and maintenance costs.
We also manufacture PSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA Oxygen Systems or related products, please contact us at info@gneeheatex.com.
