20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use

Ben sohbet şimdi

20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use

20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use
20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use 20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use 20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use 20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use

Büyük resim :  20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: GNEE
Sertifika: SGS
Ödeme & teslimat koşulları:
Min sipariş miktarı: ≥1set
Fiyat: According to the product
Ambalaj bilgileri: ahşap kutu ambalajı
Ödeme koşulları: Moneygram, Western Union, T/T, D/P, D/A, L/C

20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use

Açıklama
Çalışma baskısı: 0,1 - 1,0 MPa Oksijen Akış Hızı: 1 - 200 Nm3/saat
Akış hızı: 1-5L/dk Emici Malzeme: Moleküler Elek
Teknoloji: Basınç Salınımlı Adsorbsiyon (PSA) Kullanmak: Hastaneler
Gerilim: 380V/400V/415V/440V Oksijen üretimi: 1-1000Nm3/h
Enerji tüketimi: 0,3 - 0,8 kW/Nm3 Üretim oranı: 10-200nm3/s
Başlama zamanı: 5 - 10 dakika Saflık: %93±3
Vurgulamak:

20Nm3/h PSA Oxygen Generator

,

0.1-1.0 MPa Oxygen Generating Equipment

,

Medical Use Oxygen Generator

Medical Oxygen Generating Equipment 20Nm3/h PSA Oxygen Generator Machine for Hospitals
Product Overview

A Pressure Swing Adsorption (PSA) oxygen generator is a device that separates oxygen from other gases in ambient air, delivering concentrated oxygen for various applications. Unlike traditional cryogenic distillation methods, PSA technology provides continuous oxygen supply without complex cooling systems or large-scale infrastructure.

The working principle utilizes selective adsorption of gases through molecular sieve material. By alternating between high and low pressures, the generator isolates oxygen molecules from nitrogen and other air components.

Technical Specifications
90% 93% Approx. Weight and Dimensions
SCFH NM3/HR SCFH NM3/HR H (Inch) W (Inch) L (Inch) Weight (Lbs.)
731.92651.71863630720
1112.931002.62873637780
1644.311473.868742481728
2075.441854.869342481927
3118.192787.3210346482630
41410.893719.7410650534892
51613.5746112.1311052583851
72419.0364717.029754604592
123732.52110629.1012172727576
164143.15146838.6011674889370
210755.40188549.56137748810882
252166.28225559.291358411215238
291876.72261068.631279011215602
370697.45331587.181479011216699
4101107.83366896.4612112015619988
4473117.634002105.2312712015620791
5033132.334502118.3818412015621774
20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use 0 20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use 1 20Nm3/h Medical PSA Oxygen Generator with 0.1-1.0 MPa Working Pressure for Hospital Use 2
Key Advantages
  • Quick startup and stable: On-site oxygen production reaches required purity and stabilizes output within 30 minutes of startup
  • Proprietary technology: Unique adsorption tower structure and PSA energy-saving technology ensure efficiency
  • Energy-saving & efficient: Multiple molecular sieve protection and exclusive oxygen purity control technologies enable long-term operation
  • High quality construction: Rigorous quality control and attention to detail ensure excellent product quality
  • Skid-mounted design: Compact footprint with easy installation and maintenance; ergonomic design enhances user experience
Medical Applications

PSA oxygen generators serve critical functions in healthcare environments:

  • Oxygen Therapy: Supports patients with respiratory conditions (COPD, asthma, pneumonia) in ICUs and patient rooms
  • Emergency Medical Services: Portable units provide life-saving oxygen during ambulance transport
  • Operating Rooms: Ensures steady oxygen supply for anesthesia machines during surgical procedures
Packaging & Delivery

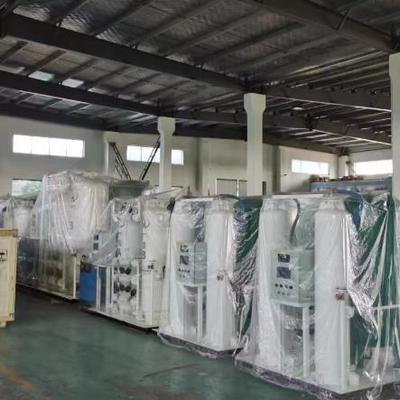

  • Export-standard packing with wooden cases and anti-collision foam blocks
  • Machines wrapped in stretch film and pearl cotton protection
  • Two units typically shipped in 20ft or 40ft containers
  • Boosters and fittings packed separately in wooden cases
  • Fragile components (gauges, flowmeters, controllers) receive special anti-collision treatment
We also manufacture VPSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com.
